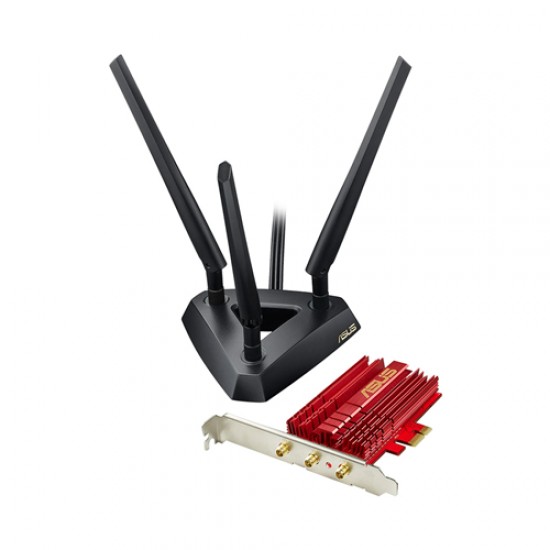

Asus PCE-AC68 AC1900 Dual-Band PCIe Wi-Fi Adapter

802.11ac Dual-band Wireless-AC1900 PCI-E Adapter

• 5th generation 802.11ac chipset gives you dual-band,2.4GHz/5GHz for up to super-fast 1.30Gbps
• Flexible extended antenna placement helps you pinpoint the best reception in your environment.
• Instant Wi-Fi upgrade for your desktop: no more messy Ethernet cables needed.
• High-power design clears up dead zones with 150% greater coverage
• Custom heatsink dissipates heat for more stable and reliable non-stop operation

SPECIFICATIONS

Network Standard

IEEE 802.11 a/b/g/n/ac

Product Segment

AC1900 ultimate AC performance : 600+1300 Mbps

Interface

PCI Express

Data Rate

802.11 b/g/n/ac : downlink up to 1300 Mbps, uplink up to 1300 Mbps (20/40/80MHz)

802.11 a/b/g/n/ac : downlink up to 150 Mbps, uplink up to 150 Mbps (20/40MHz)

Antenna

3 x R SMA Antenna

Operating Frequency

2.4 GHz / 5 GHz

Operation Channel

11 for N. America, 13 Europe (ETSI)

Security

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise

Management

Wireless configuration

connection management

connection profile setup

Output Power

ac mode : 18 ~22 dBm

b mode : 22 dBm

g mode : 19 ~22 dBm

n mode : 18 ~22 dBm

Modulation

64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM

Certificates

CE, FCC, IC

Dimensions

103.3 x 68.9 x 21 ~ cm (WxDxH) (Without Bezel)

Weight

125 g (Device Only)

Environmental

Operating Temperature: 0 °C to 40 °C ( °F to ºF)

Storage Temperature: -20 ° to 65 ° C ( °F to °F)

Operating Humidity: 10 % to 90 % (Non-condensing)

Storage Humidity: 10 % to 90 % (Non-condensing)

OS Support

Windows® 8.1 , 32bit/64bit

Windows® 8 , 32bit/64bit

Windows® 7 , 32bit/64bit

Windows® Vista , 32bit/64bit

Windows® XP , 32bit/64bit

Package Content

Dipole Antenna x 3

External magnetic antenna base

Low Profile Bracket

Support CD

Warranty card

Wireless LAN Adapter

ADDITIONAL INFORMATION
Warranty:
3 Years

Note *:
Features, Price and Specifications are subject to change without notice.***
